Design Globe Valves

Name: Design Globe Valves
Brand: FLOMECH VALVES

Get a Price/Quote

MOQ : 1 Piece

Design Globe Valves Specification

Sealing
Metallic / Soft Seated

Connection
Flanged / Screwed Ends

Material
Stainless Steel, Cast Iron, Carbon Steel

Power
Manual (Handwheel Operated)

Pressure
Up to 1500 PSI

Media
Water, Steam, Oil, Gas

Port Size
1/2 inch to 24 inch

Shape
Straight Pattern

Application
Industrial Piping, Oil & Gas, Water Treatment, Petrochemical

Color
Silver / Grey

Design Globe Valves Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
15 Days

About Design Globe Valves

Globe Valve

Bolted Bonnet, Swivel Disc, Outside Screw & Yoke.
Face to Face dimensions according to as per ANSI B16.10
Alternative Flanges can be provided.

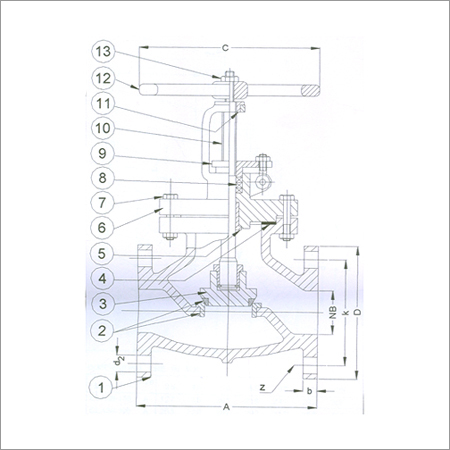

Nomenclature And Materials

Body	Cast Steel ASTM A216 Gr. WCB Stainless Steel CF - 8 / 8M
Bonnet
Gland
Disc
Spindle
Seat & Disc Ring	Stainless Steel AISI - 410
Backseat Bush	Stainless Steel CF - 8 / 8M
Handwheel	Cast Iron IS : 210 FG - 200
Packing	Graphited Jute
Packing	Carbon Steel
Bolts & Nuts	Graphited Asbetos
Gasket	Carbon Steel / Gun Metal
Yoke Sleeve	Carbon Steel / SS-304

Hydrostatic Test Pressure in Kg/Cm² (PSI)
Class	Shell	Seat
150	30 (425)	20 (285)
300	77 (1100)	51 (730)

Dimensions Are In MM

Mark	Size	25	40	50	65	80	100	125	150	200	250	300	350	400	450
Class-150 Class-300	A A	127	165	203	216	241	292	356	406	495	622	698	787	914	978
Class-150 Class-300	A A	230	229	267	292	318	356	401	445	533	622	711	-	-	-
ANSI 16.5 Class-150	C D b k d₄ d₂ z	130	210	248	285	305	394	483	533	591	667	691	733	775	911
		152	178	191	229	254	279	343	406	483	533	597	635	699	813
		19	22	24	24	24	25	29	30	32	35	37	40	43	48
		121	140	152	191	216	241	298	362	432	476	540	578	635	749
		92	105	127	157	186	216	270	324	381	413	470	584	584	692
		19	19	19	19	22	22	22	25	25	29	29	32	32	35
		4	4	4	8	8	8	8	12	12	12	16	16	20	20
ANSI B16.5 Class-300	D b k d₄ d₂ z	165	191	210	254	279	318	381	445	521
		22	25	29	32	35	37	41	48	51
		127	149	168	200	235	270	330	387	451
		92	105	127	157	186	216	270	324	381
		19	22	22	22	22	22	25	29	32
		8	8	8	8	8	12	12	16	16

Testing as per API 598/BS : 5146
'BG' Indicates as Bevel Gear.
By Pass / Gear / Actuator can provide.

Superior Construction for Demanding Applications

Engineered from high-grade materials such as stainless steel, cast iron, and carbon steel, these globe valves are designed to withstand rigorous industrial environments. The straight pattern shape and multiple port sizes provide versatile installation options for diverse piping systems in sectors including water treatment and petrochemical.

Versatile Media Compatibility and Reliable Sealing

These valves excel in controlling water, steam, oil, and gas, offering both metallic and soft-seat sealing solutions depending on your operational requirements. Whether handling high-pressure fluids or corrosive media, their design ensures safe and efficient regulation.

Tailored Solutions from Indias Leading Supplier

As an exporter, manufacturer, service provider, and supplier, our organization offers customized globe valve solutions to fit your specific application needs. Our expertise ensures reliable delivery and exceptional after-sales support for projects within India and internationally.

FAQs of Design Globe Valves:

Q: How does a straight pattern globe valve contribute to efficient flow control?

A: Straight pattern globe valves offer streamlined flow paths that minimize turbulence and pressure drop, making them ideal for regulating flow in industrial piping. Their design ensures precise throttling and shutoff capabilities for various media.

Q: What materials are available for these valves, and how do they affect performance?

A: Design Globe Valves are available in stainless steel, cast iron, carbon steel, and other alloys. Material selection directly affects durability, corrosion resistance, and suitability for different media such as oils, steam, and corrosive fluids.

Q: When should metallic or soft-seated sealing be used in globe valves?

A: Metallic seats are preferable for high-temperature or abrasive applications, such as steam or oil systems, while soft-seated options offer superior leak tightness for low-pressure water and gas services, ensuring the best fit based on operational demands.

Q: Where are these globe valves commonly installed?

A: These valves are widely used in industrial facilities, including oil & gas pipelines, water treatment plants, and petrochemical sites. Their adaptable port sizes and end connections make them suitable for new installations or retrofitting.

Q: What is the process for selecting the right globe valve for a specific media or pressure range?

A: Selection involves determining media compatibility, pressure rating, port size, material, sealing type, and connection style. Consulting with an expert supplier helps match the valve specifications to the requirements of your industrial process.

Q: How does manual (handwheel) operation benefit valve usage and maintenance?

A: Manual handwheel operation provides straightforward, reliable control, allowing operators to adjust flow easily during maintenance or emergencies. This design simplifies upkeep and offers cost-effective actuation for most industrial environments.
