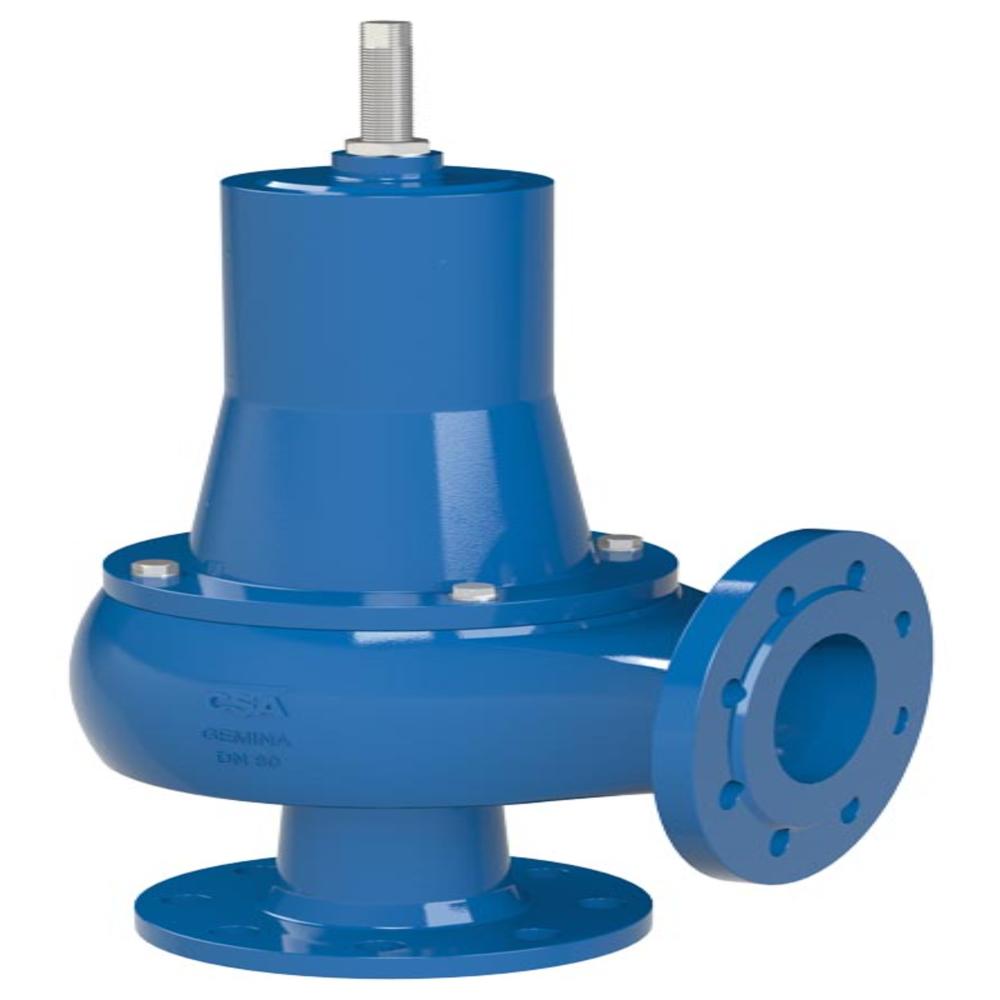

Cast Iron Pressure Relief Valve

Name: Cast Iron Pressure Relief Valve
Brand: FLOMECH VALVES
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Cast Iron Pressure Relief Valve Specification

Control System
Spring operated

Material
Cast Iron

Features
Corrosion resistant coating, easy maintenance, robust design

Valve Type
Safety/Relief Valve

Connection Type
Flanged

Valve Size
1 inch to 8 inch

Structure
Spring loaded, direct acting

Sealing
Renewable seat, soft or metal

Application
Pressure control and safety in pipelines and process systems

Type
Pressure Relief Valve

Power
Manual

Pressure
up to 16 Bar

Media
Water, Steam, Air, Gas

Port Size
DN25 to DN200

Temperature
Up to 220C

Disc
Renewable disc

Pin
Stainless Steel

Finish
Epoxy coated for corrosion resistance

Back Pressure
Suitable for back pressure application

Operation
Automatic pressure release

Set Pressure Range
2 to 16 Bar

Body Gasket
Spiral wound gasket

Paint Thickness
Min. 80 microns

Spring Material
Spring Steel IS: 4454

Weight
Varies by size (approx. 8 kg to 65 kg)

Standard
As per IS: 13095 or equivalent

Body Test Pressure
24 Bar

Installation Orientation
Vertical

End Connection
ANSI/DIN standard flange

Bonnet Type
Bolted

Cast Iron Pressure Relief Valve Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Cast Iron Pressure Relief Valve

Reserve your Cast Iron Pressure Relief Valve today for an unbeatable price and enjoy a first-class safety solution for your pipeline systems. This superbly engineered valve, meeting IS: 13095 or equivalent standards, features an epoxy-coated finish for exceptional corrosion resistance. It operates automatically under a robust, spring-loaded direct-acting mechanism, making installation and maintenance effortless. Personalise your selection from a wide range of port sizes (DN25-DN200) and sealing options. Astounding durability and reliable performance are guaranteed, ensuring supreme control across water, steam, air, and gas applications. Manufactured and exported from India, this valve stands as a testament to unmatched quality and value.

Versatile Usage and Applications

The Cast Iron Pressure Relief Valve is expertly designed for use in a wide array of pressure management and safety applications within pipelines and process systems. Its ideal usage includes automatic pressure release in vertical installations for water, steam, air, and gas. Common application places are industrial plants, chemical facilities, water treatment centers, and manufacturing units where safeguarding equipment and ensuring operational integrity are paramount for both safety and efficiency.

Main Export Markets and Transport Solutions

Our Cast Iron Pressure Relief Valve is widely exported to global markets, with an emphasis on seamless transport services and secure handover of shipped goods. The main export destinations include the Middle East, Southeast Asia, Africa, and Europe. FOB Port options include Mumbai and other major Indian ports. We offer a flexible sample policy to accommodate testing needs, ensuring buyers receive exemplary products that match their specific requirements before full-scale procurement.

FAQ's of Cast Iron Pressure Relief Valve:

Q: How do I select the appropriate pressure relief valve size for my application?

A: To choose the correct pressure relief valve size, consider your system's required port size (ranging from 1 to 8 inches / DN25 to DN200), the set pressure range (2 to 16 Bar), and the media type (water, steam, air, or gas). Consulting with a supplier for application-specific advice is recommended.

Q: What advantages does the epoxy coated finish provide?

A: The epoxy coated finish delivers superb corrosion resistance, protecting the valve from harsh environmental conditions and ensuring long-lasting performance in demanding industrial settings.

Q: Where are these valves commonly installed?

A: These valves are commonly installed in vertical orientation within pipelines found in industrial plants, process facilities, water treatment units, and chemical plants-locations where pressure control and system safety are critical.

Q: What is the process for shipping and delivering these valves internationally?

A: We provide comprehensive transport services from major FOB ports such as Mumbai, ensuring smooth handover and safe delivery of shipped goods to destinations across the Middle East, Southeast Asia, Africa, and Europe.

Q: When should I consider using a cast iron pressure relief valve?

A: Consider using a cast iron pressure relief valve whenever pipeline or process system safety is a priority, especially in applications requiring robust, automatic pressure control for a variety of media and pressure ranges up to 16 Bar.
