CAST STEEL GATE VALVE

Product Description

Under the guidance of a strong management team, we are able to provide an exclusive gamut of CAST STEEL GATE  VALVE as per API 600 Standard in Class- 150 #, 300 #, 600#. . This valves are manufactured under the surveillance of our deft professionals by making usage of best quality CAST STEEL ( ASTM A216 GR. WCB, ASTM A351 CF-8, CF-8L, CF-8M, CF-8ML, ALLOY STEEL etc.) methodologies at our technologically advanced production unit. Offered valves are widely demanded in residential sectors for controlling the direction of fluid. In addition to this, the offered CAST STEEL GATE  VALVEis made available in numerous sizes ( 50 mm to 600 mm) and shapes at pocket-friendly rates.

Features:

• Dimensional accuracy

• Sturdiness

• Corrosion resistance

• Easy installation

Other Info:

• Bolted Bonnet, Solid Wedge, Outside Screw & Yoke type.

• OPERATION : MANUAL HAND WHEEL /  PNEUMATIC CYLINDER / ELECTRIC ACTUATOR.

• Flange to Flange as per ANSI B16.10

• Flange Dimension as per ANSI B16.5

• Alternative Flanges can be provided.

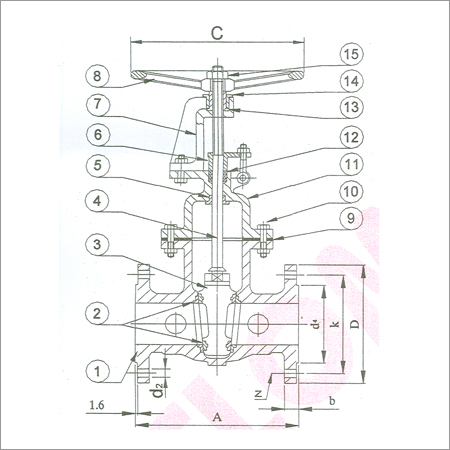

Nomenclature And Materials

Dimensions Are In MM

• Testing as Per BS : 5146
• 'BG' indicates as 'BEVEL GEAR'.
• Chain Wheel / Gear / Actuator can be provided.
• Shoes & Channel position indicator / Extn. rod with coupling / By Pass arrangement can be provided.Under the guidance of a strong management team, we are able to provide an exclusive gamut of CAST STEEL GATE  VALVE as per API 600 Standard in Class- 150 #, 300 #, 600#. . This valves are manufactured under the surveillance of our deft professionals by making usage of best quality CAST STEEL ( ASTM A216 GR. WCB, ASTM A351 CF-8, CF-8L, CF-8M, CF-8ML, ALLOY STEEL etc.) methodologies at our technologically advanced production unit. Offered valves are widely demanded in residential sectors for controlling the direction of fluid. In addition to this, the offered CAST STEEL GATE  VALVEis made available in numerous sizes ( 50 mm to 600 mm) and shapes at pocket-friendly rates.

  Features:


  • Dimensional accuracy

  • Sturdiness

  • Corrosion resistance

  • Easy installation



  Other Info:


  • Bolted Bonnet, Solid Wedge, Outside Screw & Yoke type.

  • OPERATION : MANUAL HAND WHEEL /  PNEUMATIC CYLINDER / ELECTRIC ACTUATOR.

  • Flange to Flange as per ANSI B16.10

  • Flange Dimension as per ANSI B16.5

  • Alternative Flanges can be provided.

  Nomenclature And Materials


  Body	ASTM A216 Gr. WCB / S.S. CF - 8 / 8M
  Seat & Wedge Ring	13% CR. Deposited / S.S. CF - 8 / 8M
  Wedge	ASTM A216 Gr. WCB / S.S. CF - 8 / 8M
  Spindle	Stainless Steel AISI - 410 / 304 / 316
  Backseat Bush	Stainless Steel AISI - 304 / 316
  Gland	ASTM A216 Gr. WCB / S.S. CF - 8 / 8M
  Yoke (Above 200mm)	ASTM A216 Gr. WCB / S.S. CF - 8 / 8M
  Handwheel	Cast Iron / M.S.Fabricated
  Gasket	C. A. F
  Bolts & Wheel	Carbon Steel
  Bonnet	Carbon Steel
  Packing	Graphited Asbestos
  Yoke Sleeve	Carbon Steel
  Yoke Nut	Carbon Steel
  Hand Wheel Nut	Carbon Steel




  Hydrostatic Test Pressure in Kg/Cm2 (PSI)
  Class	Shell	Seat
  150	30 (427)	21 (300)


  Dimensions Are In MM


  Mark	Size	25	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
  	A B	127	165	178	190	203	229	254	267	292	330	356	381	406	432	457	508
  		152	152	203	203	229	254	305	305	381	457	533	610	610	686	BG	BG
  ANSI B 16.5 Class-150	D b k d4 d2 z	108	127	152	178	191	229	254	279	343	406	483	533	597	635	699	813
  		14	17	19	22	24	24	24	25	29	30	32	35	37	40	43	48
  		79	98	121	140	152	191	216	241	298	362	432	476	540	578	635	749
  		51	73	92	105	127	157	186	216	270	324	381	413	470	584	584	692
  		16	16	19	19	19	22	22	22	25	25	29	29	32	32	35	20
  		4	4	4	4	4	8	8	8	8	12	12	12	16	16	20	20

  • Testing as Per BS : 5146
  • 'BG' indicates as 'BEVEL GEAR'.
  • Chain Wheel / Gear / Actuator can be provided.
  • Shoes & Channel position indicator / Extn. rod with coupling / By Pass arrangement can be provided.
